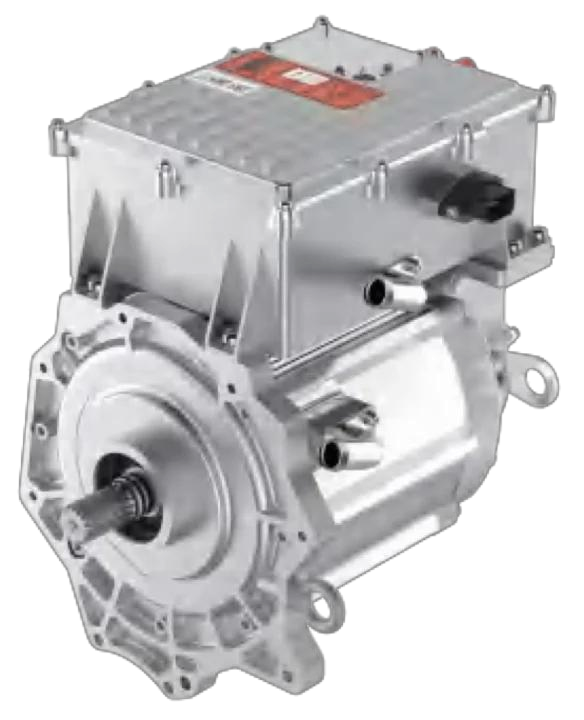

Lite-180 platform
Longitudinal packaging layout · Water-cooled
- Voltage
- 80–336VDC
- Power
- 13–80kW
Typical applications
- Forklifts
- Mini excavators
- Compact loaders
- Agricultural machinery
Leviticus-2In1 Series
2-in-1 Motor and Controller
Product overview · Deep integration of motor and electronic control
A 2-in-1 motor and controller reduces wiring harnesses and final-assembly interfaces, as well as system cost and size. The range covers 80–620 V; every platform meets the IP67 rating and provides high vibration resistance.
- Voltage coverage
- 80–620 VDC
- IP rating
- IP67
- Product platforms
- 5 platforms
Five product platforms

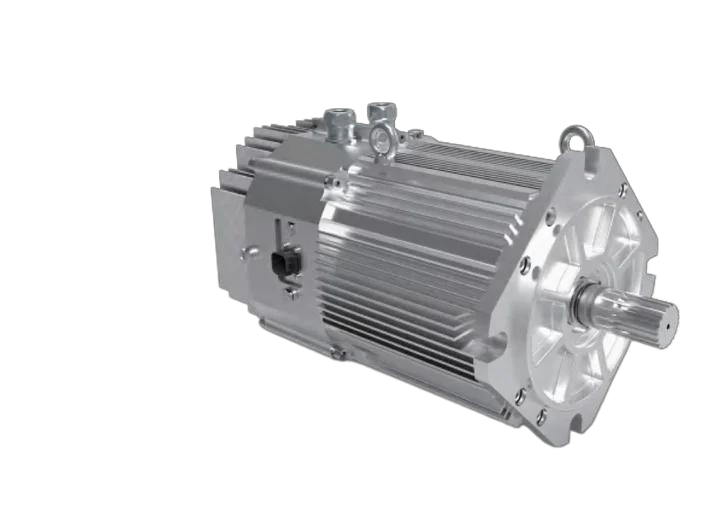

Lite-200 platform
Low-voltage flat-wire winding · Longitudinal packaging layout
- Voltage
- 80VDC
- Power
- 6–35kW
Typical applications
- Aerial work platforms
- Street sweepers
- Agricultural machinery

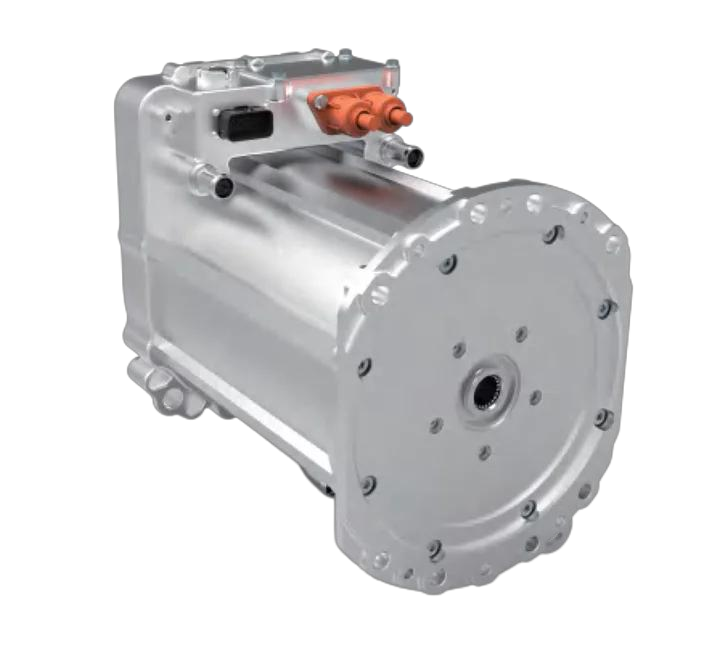

Elite-210 platform
Axial packaging layout
- Voltage
- 307–350VDC
- Power
- 30–71kW
Typical applications
- High-capacity forklifts
- Excavators
- Compact loaders

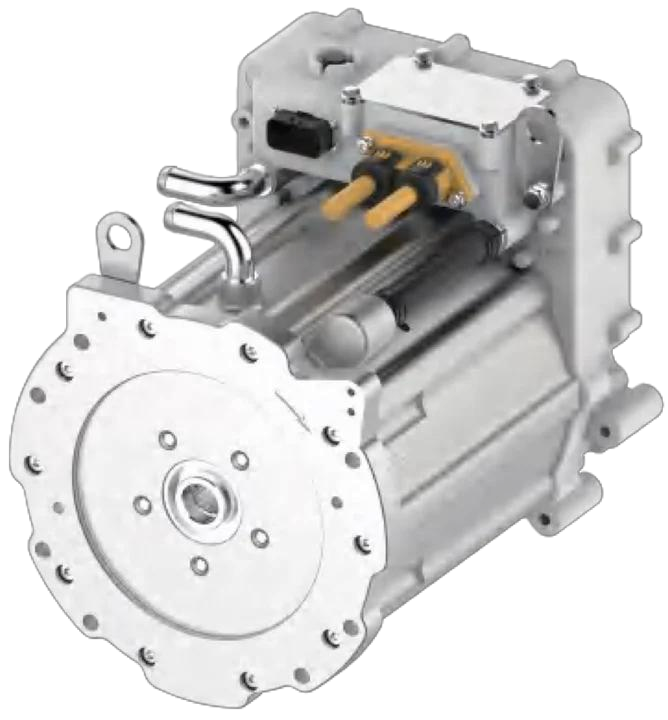

Elite-220 platform
Axial packaging layout · Wide power range
- Voltage
- 270–598VDC
- Power
- 30–190kW
Typical applications
- Medium excavators
- Large loaders
- Light-duty trucks

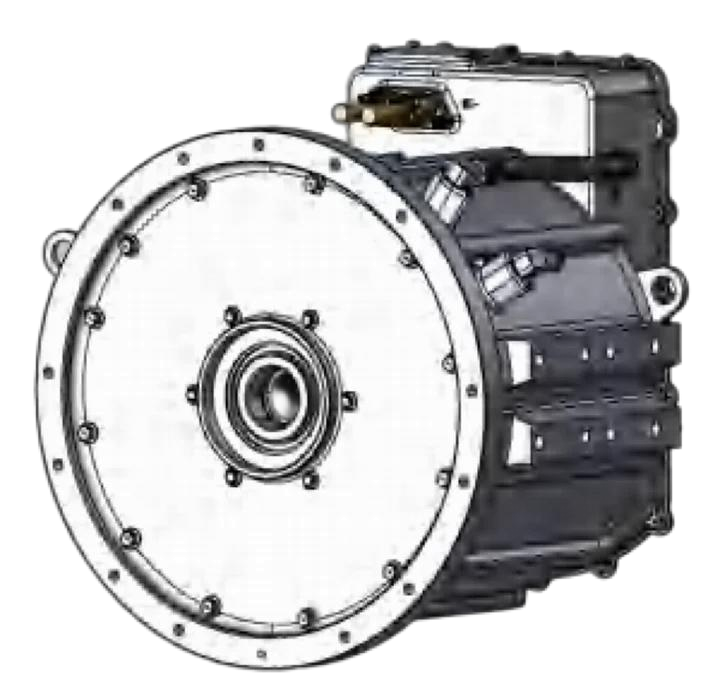

Mage-380 platform
High-power 2-in-1
- Voltage
- 620VDC
- Power
- 270–480kW
Typical applications
- Large loaders
- Agricultural machinery
- Rotary drilling rigs
Model naming: Leviticus-2In1 variants A/B/C/D correspond to different voltage and power levels.
Take Your Electronic Control and Power Platform Solution to the Next Stage
Submit your requirements for electronic control, power systems, power electronics, intelligent test analysis, or mass-production support. Our engineering team will provide a proposed approach based on your operating conditions.
